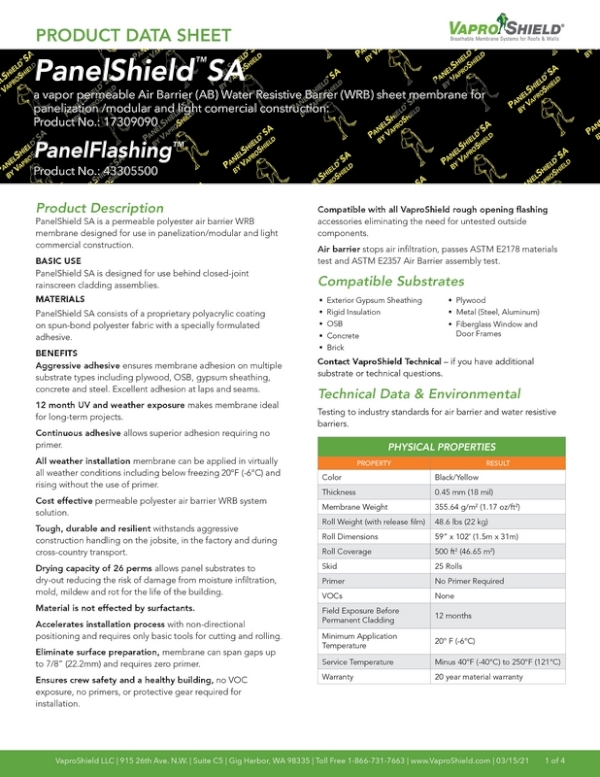

Quick Overview
PanelShield SA is designed for use in commercial, panelization, modular, and residential construction applications. The proprietary polyacrylic coating on spun-bond polyester fabric with a specialty formulated adhesive firmly grips to substrates and offers an extremely tough and resilient surface.

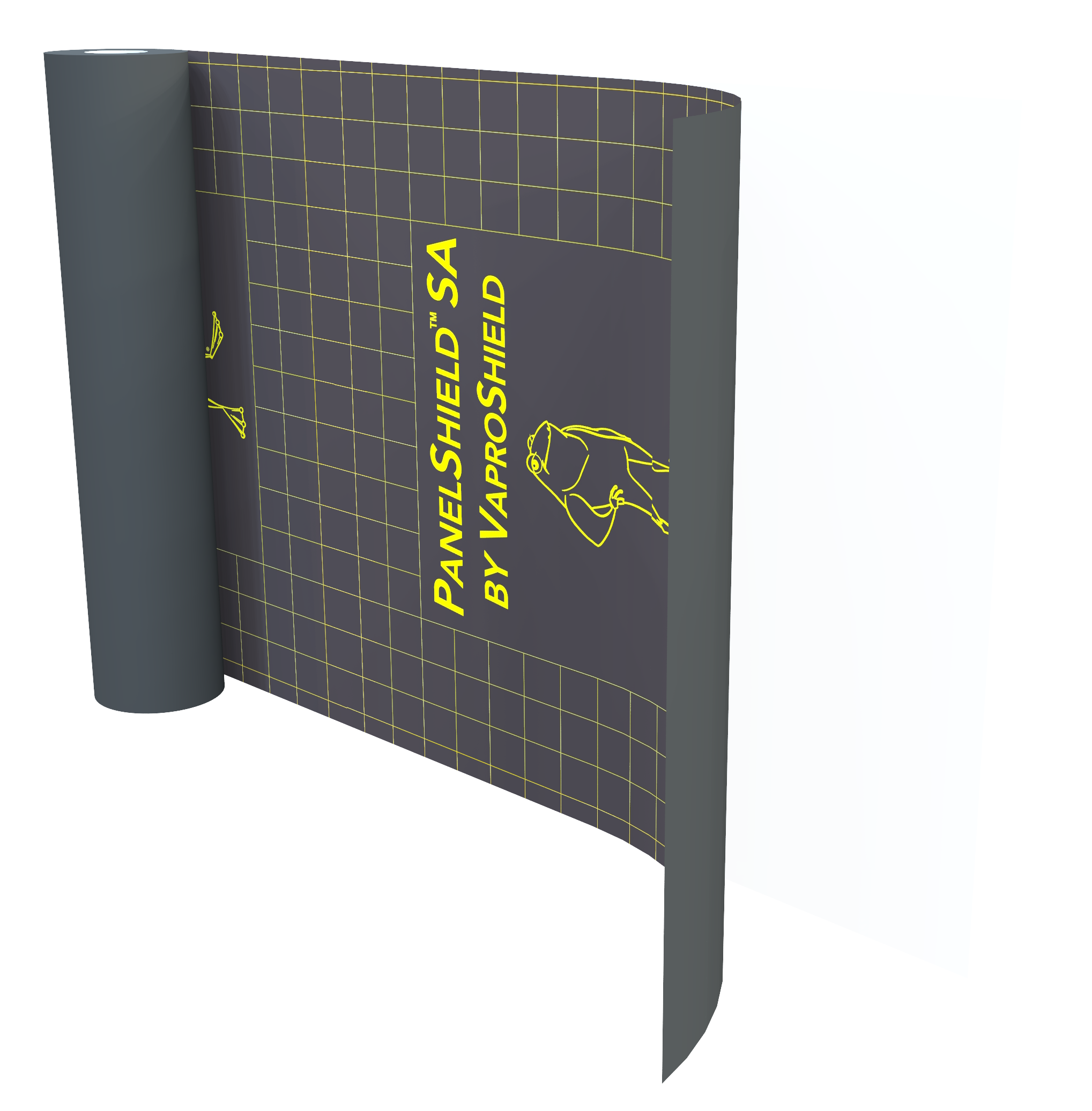

A vapor permeable, self-adhered water resistive barrier membrane that protects the building envelope by allowing vapor to pass through (breathable) but not air or liquid water
- Creates a water resistive air barrier when applied outside of the wall sheathing
- Aggressive adhesive firmly grips to OSB and other common substrates
- Cost effective permeable polyester air barrier WRB system
- 12 months UV and weather exposure, ideal for long-term projects
- Continuous adhesive allows superior adhesion requiring NO PRIMER
- All weather installation - including below freezing 20°F (-6°C)
- Tough, durable, and resilient, withstands aggressive construction handling on the jobsite, in the factory, and during cross-country transport
- Superb drying capacity, 24.3 perms
- Used for transitions, rough openings, fenestrations, and full-wall applications
- Zero VOCs or toxins

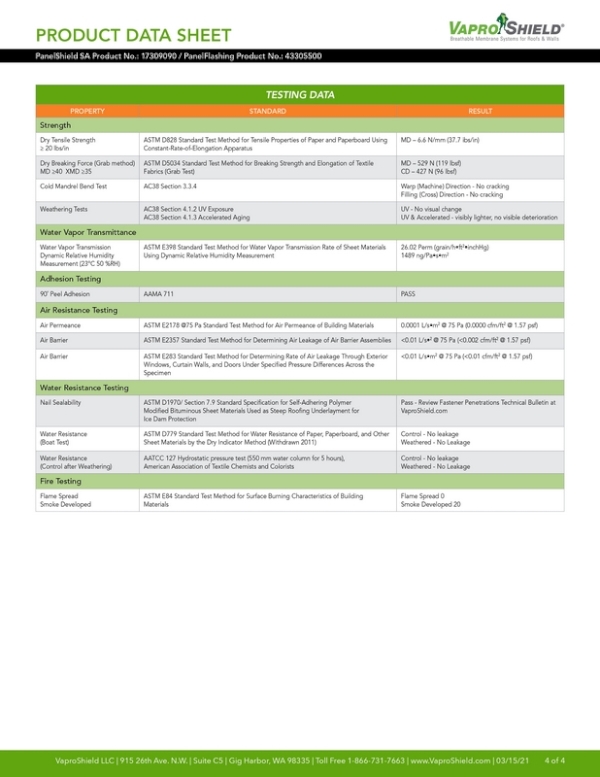

- Air Barrier, passes ASTM E2178 and E2357
- Fire Rated, Class A to ASTM E84
- 20 year warranty

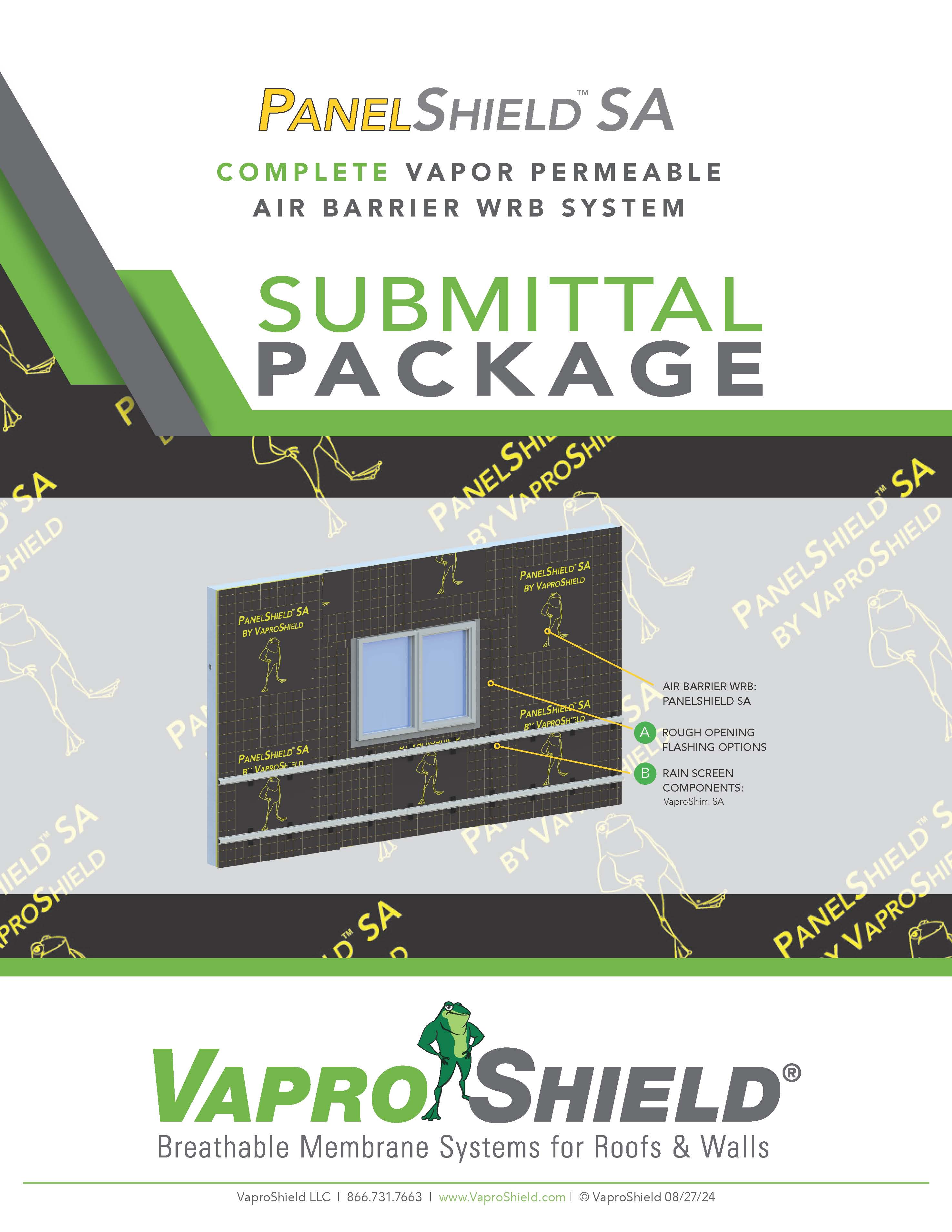

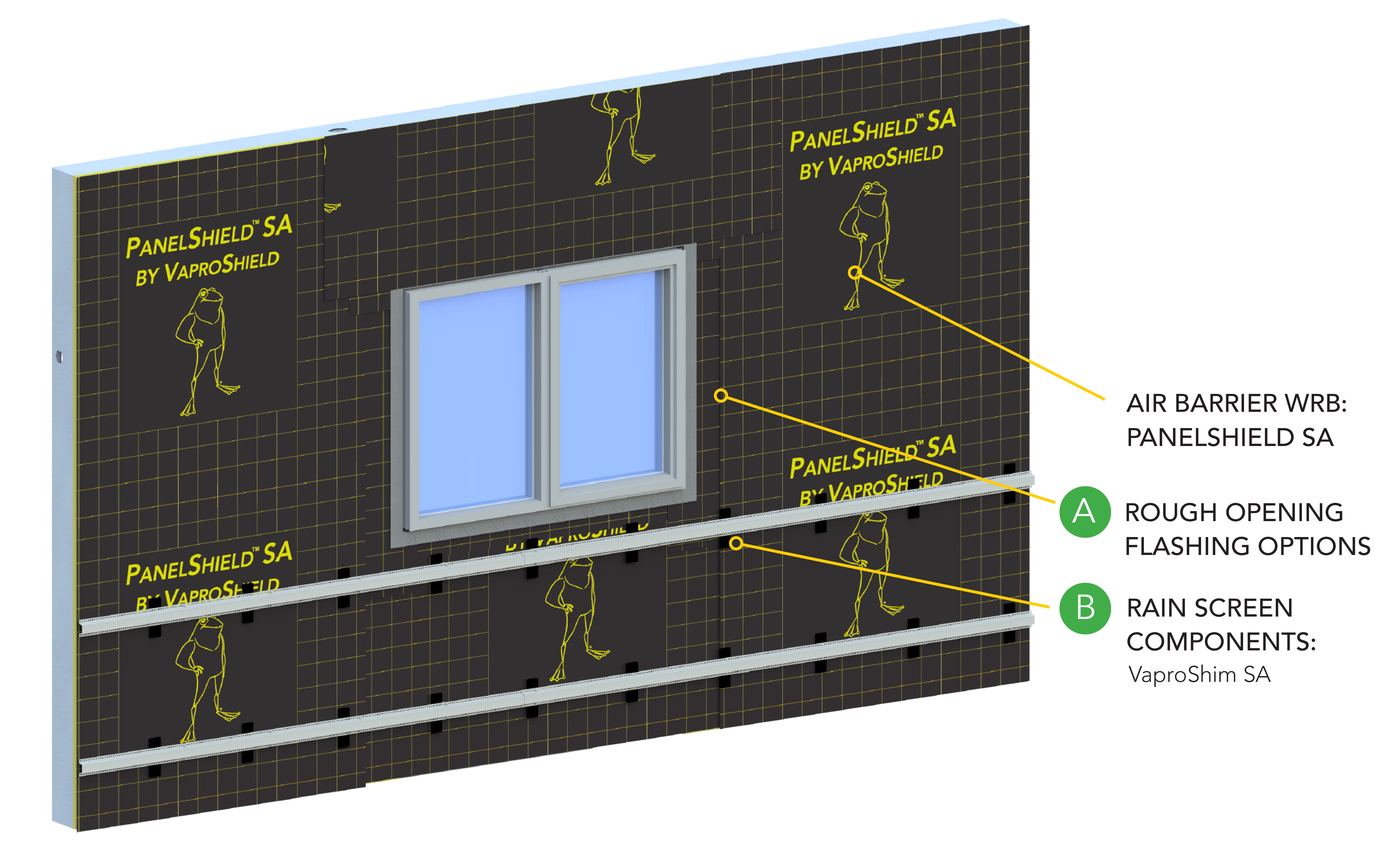

Complete Vapor Permeable Air Barrier WRB System
 |
|

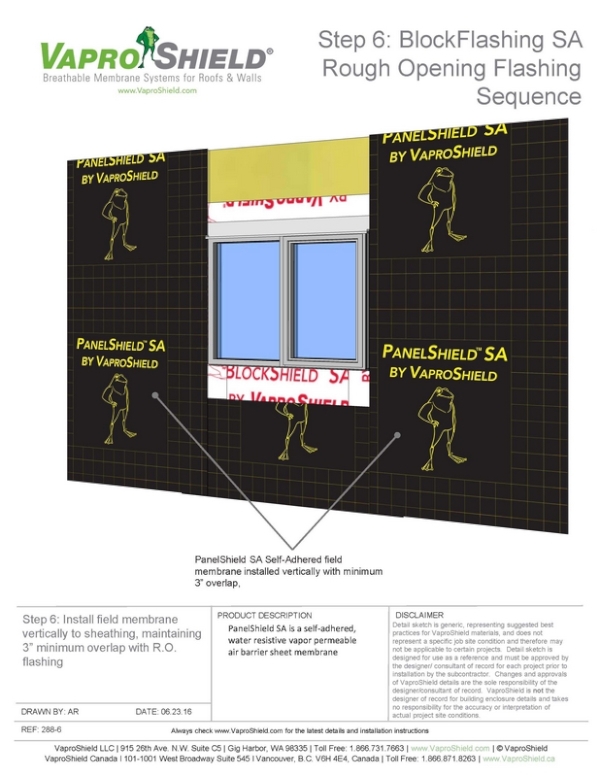

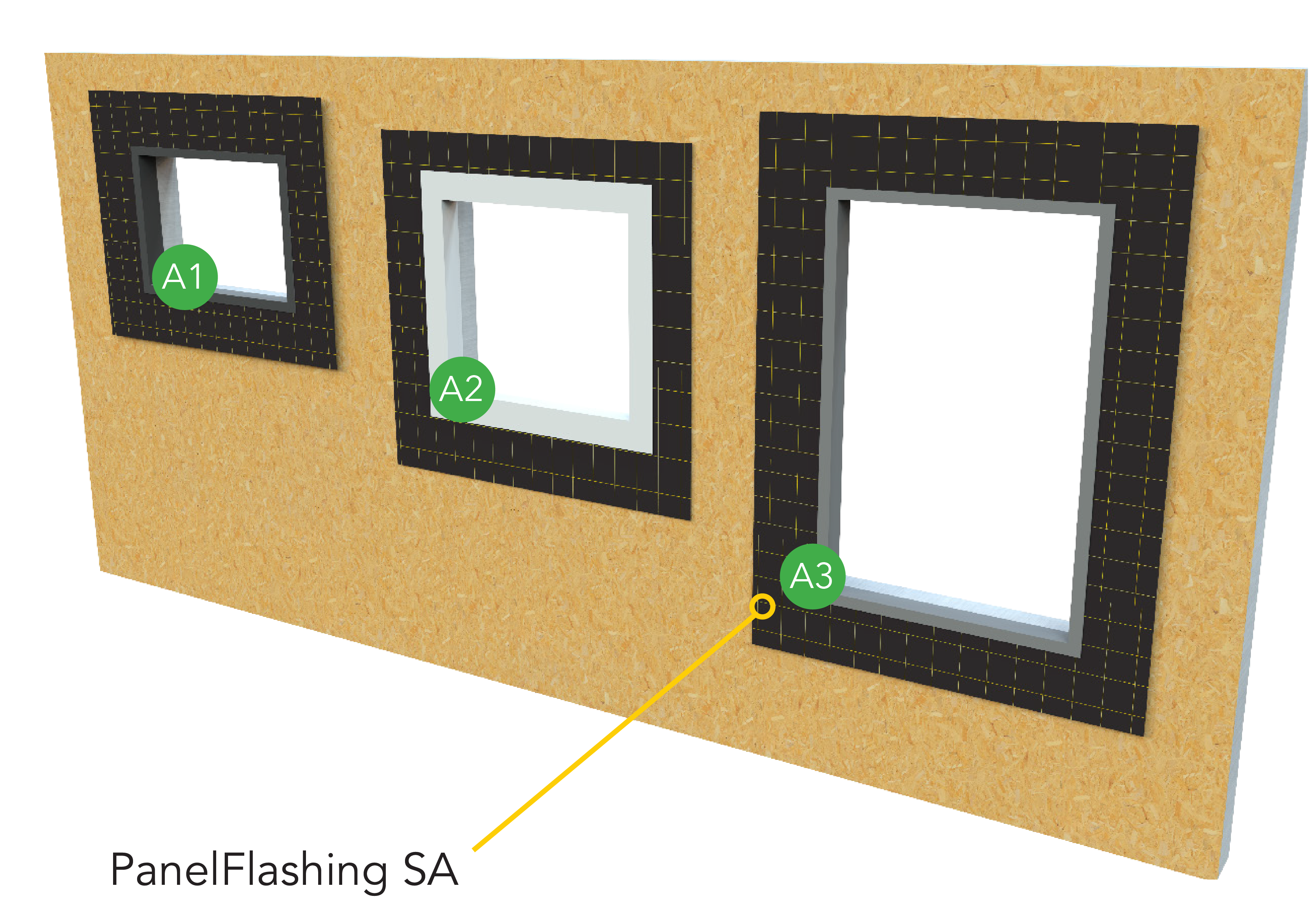

Rough Opening Flashing Options The following rough opening flashing components can be used: |
 |
VaproLiqui-Flash - is a liquid applied waterproof flashing material for window and door interfaces. | |
 |
BlockFlashing - is a non-permeable flashing. | |
 |
VaproBond - is a 100% silicone sealant |
Watch PanelShield Withstand Storm Conditions
Approvals and Certificates
 |
